EROI52 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video

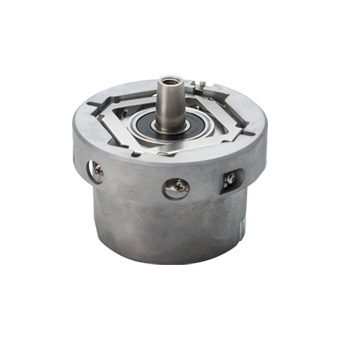

The elevator sin-cos encoder is primarily used in conjunction with the elevator traction machine to provide feedback on the real-time position of the elevator car. It is stable, reliable, robust, and durable.

Product characteristics
Product advantages

Reliability Enhancement: Compared to traditional mainstream solutions, this product adopts an absolute value scheme, effectively avoiding system failures caused by the loss of original signals.

Usability Enhancement: With electronic zeroing function, replacing the encoder on-site does not require re-dynamic self-learning.

Compatibility Enhancement: Seamlessly compatible with mainstream installation methods in the market, facilitating seamless matching for customers.

Technical specifications
System
Resolution 2048P/R
Incremental signals optional Sin-Cos 1 Vpp
Communication Frequency ≤100KHz
Maximum transmission distance 30m
Connection PCB connector and cable
Diameter φ 65mm
Height 55mm
Electrical
Supply Voltage 5 V ± 5%
Main power supply current consumption (typical) 100mA
Insulation Impedance >500MΩ
Environment
EMC Features IEC61000-4
Operating Temperature -40℃~120℃
Humidity ≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating IP 40
Shock Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
Application
Specification
Sin-Cos Analog EROI52C-2048-PN-5V Series Encoder Specification V1.0
3D Model
