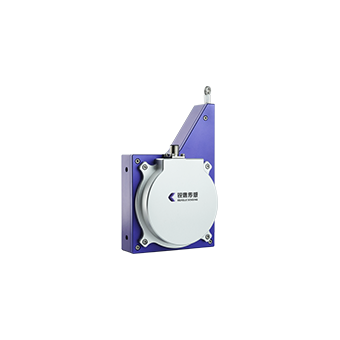

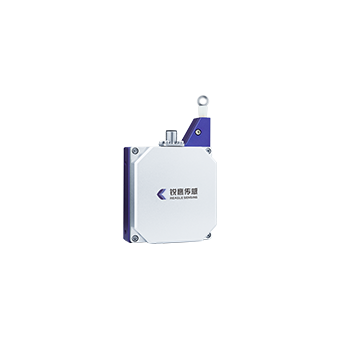

Wire Draw Encoder
Thinner and lighter: 50% thinner compared to the industry average, making it more compact for installation.
Faster: Unique integrated design eliminates physical connections between the encoder and the cable box, ensuring immediate output without lag.
More rugged: High integration in the one-piece design enhances durability, making it more resistant to vibrations and suitable for industrial environments.
More precise: Measured output accuracy <±2mm, with a 30% improvement in linearity and resolution.
Low maintenance: Designed with anti-contamination interfaces, sealed components to resist environmental ingress.
Measurement range | 3m / 5m |
Resolution | 0.002m |
Repeatability | ≤0.2mm |
Linearity | ≤±2m |
Hysteresis | ≤0.4mm |
Communication Interface | CANopen |
Wire acceleration | 4m/s2 |
Diameter of the draw-wire rope | 0.6mm |
Supply Voltage | 10V-30V |
Operating Temperature | -20℃~85℃ |
Humidity | 95%RH,No Condensing |
IP Rating | IP 65 |
